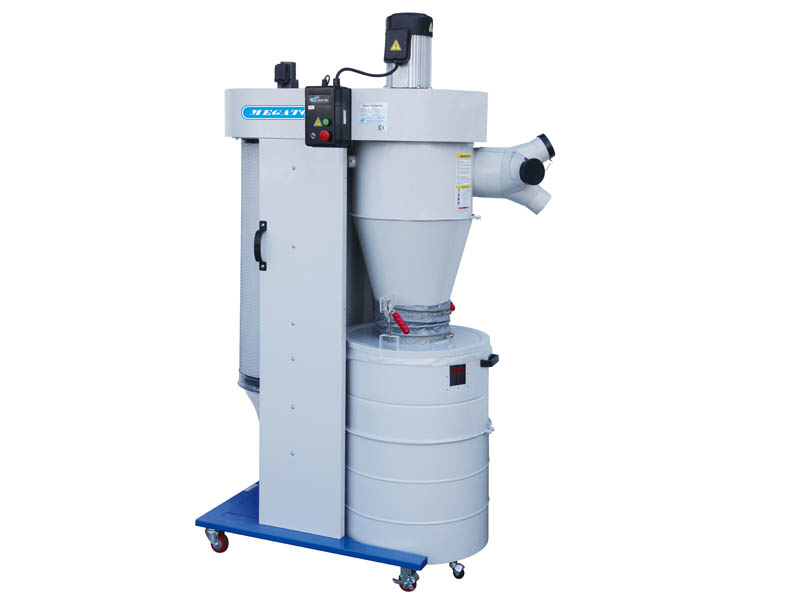

- The UB-3100VECK offers the benefits of a larger cyclone dust collector and the portability needed for shops of all sizes.
- Innovative impeller design ensures quiet operation.
- Provides 2200 CFM of airflow; more than enough to collect particulates from multiple machines; Ideal for a central installation.
- Ideal for a central installation.
- Connect the UB-3100VECK directly to your machines for “point of generation dust control”.
- The cyclone separator system removes the particulate from the airflow before it enters the impeller.
- The dustless collector is mounted on castors. It can be easily maneuvered around the shop.
- Equipped with two suction inlets of 8” x 4”
- The 63 gallon steel drum is mounted on casters so it can be easily rolled away for emptying.
- The Quick Lift lever allows the recovery drum to be easily removed by a single operator.
- The recovery drum has a window on the side so you can easily see when the drum is full.
- A Polyliner bag can be inserted in the recovery drum to facilitate emptying. An inner frame (bag holder) is provided to keep the Polyliner in place.
- The final stage of filtration is a canister filter with 1 micron efficiency which prevents fine dust from escaping into the shop.
- The canister filter is made of a pleated media and reinforced with steel mesh.
- The motorized automatic filter cleaning system ensures that the canister filter is always ready for the next use.
- The optional remote control allows you to start the dust collector from anywhere in the shop.
- Meets OSHA requirements by significantly reducing the amount of airborne particulate in your shop.
|
