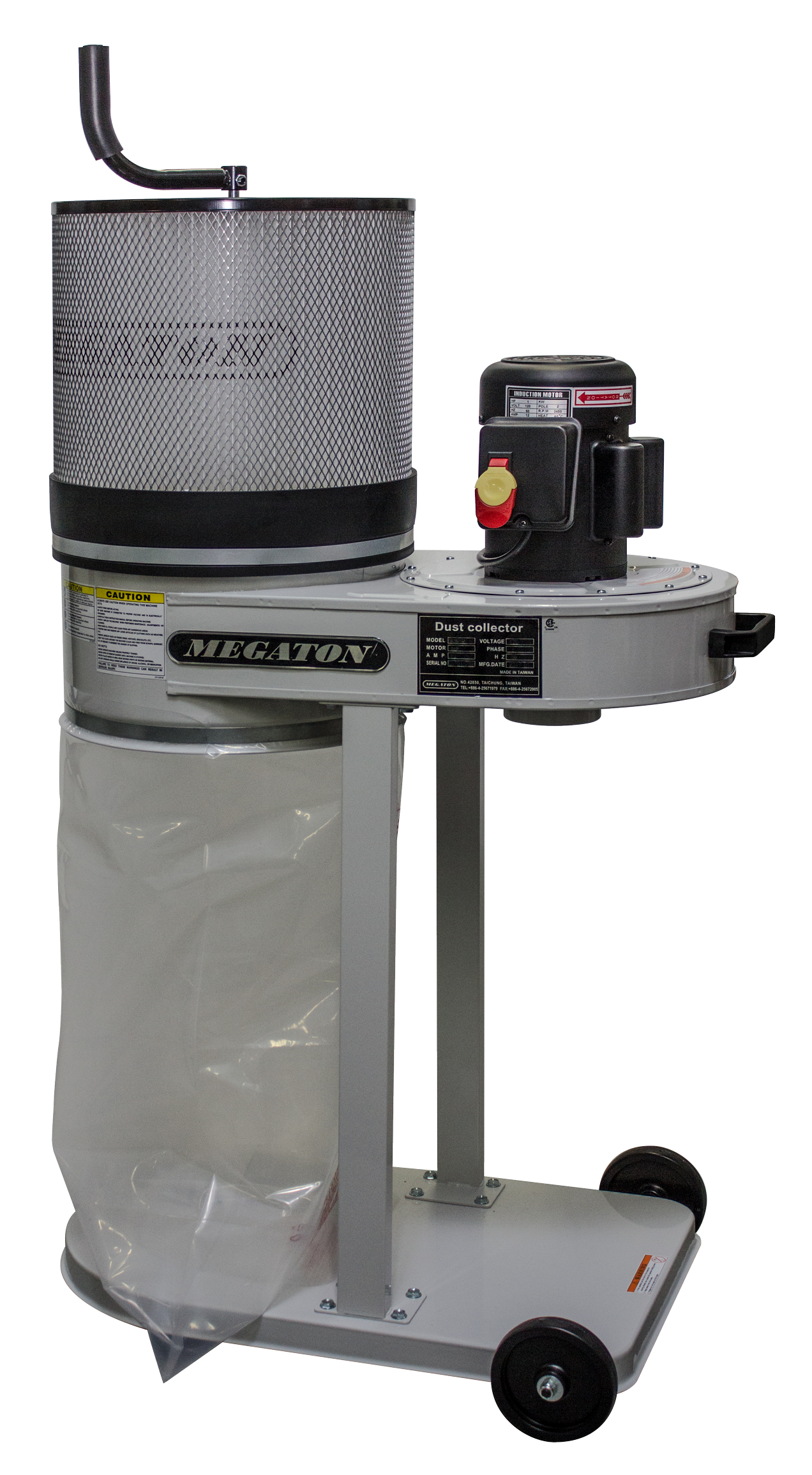

UB-801CK

1HP PORTABLE DUST COLLECTOR WITH MANUAL FILTER CLEANING SYSTEM

Specs	113060A3
Bag Holder Type	n/a n/a
Voltage	120V 60Hz 120V 60Hz
Power	1 HP 1 HP
Airflow	750 CFM 750 CFM
Maximum Static Pressure	6 in. H₂O 6 in. H₂O
Filter Type	Cartridge with manual cleaning Cartridge with manual cleaning
Filter Surface Area	14 ft.² (1.3 m²) 14 ft.² (1.3 m²)
Inlet Diameter	4" x 1 4" x 1
Dimensions (L x W x H)	27" x 20" x 59.5" (685 x 500 x 1510 mm) 27" x 20" x 59.5" (685 x 500 x 1510 mm)
Weight (machine only)	77 lb. (35 kg) 77 lb. (35 kg)
Power Cord Length	6 ft. (170 cm) 6 ft. (170 cm)
Sound Level at 6.6 ft.(3m)	70 dB(A) 70 dB(A)
Bag Capacity	13 gal. 13 gal.
